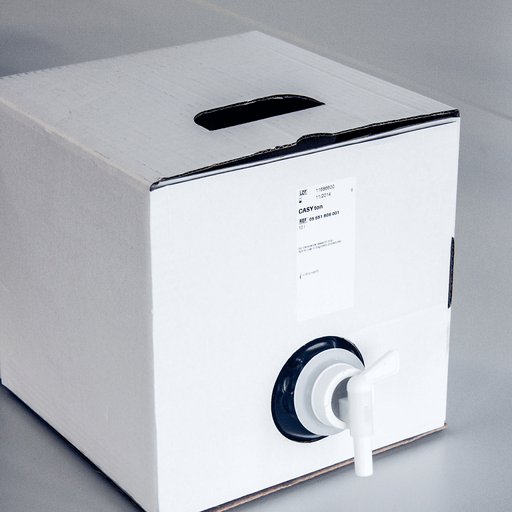

Isotonischer Messpuffer für die Zellzählung
Verwendbar mit allen CASY-Modellen.
1x 10 L
(hergestellt nach ISO 9000 ff)

Verbrauchsmaterial für CASY

Zolltarifnummer: 3822 1900
Ursprungsland: Deutschland
Nettogewicht: 10,18 kg
Bruttogewicht: 11,00 kg
Maße :25 x 25 x 26 cm

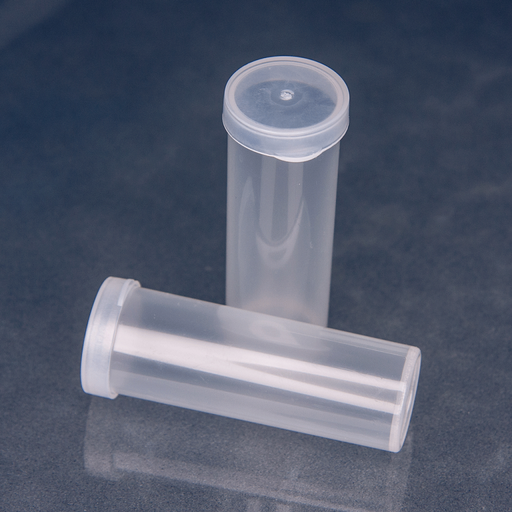

Messgefäße für alle CASY-Modelle
1 VE = 1.800 Stück

Zolltarifnummer: 3926 9097
Ursprungsland: Deutschland
Nettogewicht: 8,35 kg
Bruttogewicht: 9,00 kg

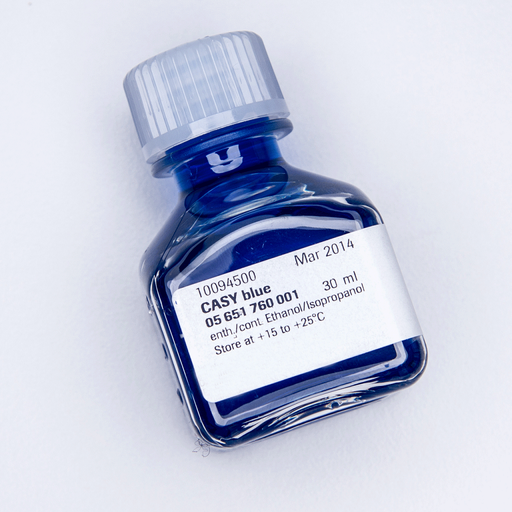

Lösung zum kontrollierten Abtöten von Zellkulturzellen; für CASY Zellzähl und Analysesystem
1 x 30 ml
[INTERNAL/EPROD]

Zolltarifnummer: 3822 1900
Ursprungsland: Deutschland
Nettogewicht: 0,040 kg
Bruttogewicht: 0,114 kg

Excepted Quantities
**** UN 1987 ****
ALKOHOLE, N.A.G. (Ethanol, Propan-2-ol)
**** Hazard Group 3 ****
**** Packing Group II ****
**** Tunnelcode: D/E ****

Stabiler Probenständer aus Polyoxymethylen für 24 CasyCups

Zolltarifnummer: 3926 9097
Ursprungsland: DE
Nettogewicht: 0,429 kg
Bruttogewicht: 0,429 kg

Bottom Shape: Round
Plate Surface Treatment: UV Irradiated
Sensor Substrate Material: Glass
Viewing Window: No
Well Bottom Dimension: 5.0 mm ± 0.05 mm
Well Plate Material: Polystyrene
Well Volume: 243 μL ± 5 μL

Research Use Only

Bottom Shape: Flat
Plate Surface Treatment: UV Irradiated
Sensor Substrate Material: Biocompatible Surfaces
Viewing Window: No
Well Bottom Dimension: 5.0 mm +/- 0.075mm
Well Plate Material: Biocompatible Surfaces
Well Volume: 243 µL +/- 10 µl

Research Use Only

Bottom Shape: Flat
Plate Surface Treatment: UV Irradiated
Sensor Substrate Material: PET
Viewing Window: Yes
Well Bottom Dimension: 5.0 mm ± 0.05 mm
Well Plate Material: Polystyrene
Well Volume: 243 μL ± 5 μL

Research Use Only

Bottom Shape: Flat
Plate Surface Treatment: UV Irradiated
Sensor Substrate Material: PET
Viewing Window: Yes
Well Bottom Dimension: 5.0 mm ± 0.075 mm
Well Plate Material: Polystyrene
Well Volume: 270 μL ± 10 μL

Research Use Only

Plate Surface Treatment: UV Irradiated
Sensor Substrate Material: Glass
Viewing Window: No
Well Bottom Dimension: 64 mm2 ± 10%
Well Plate Material: Polystyrene
Well Volume: 830 μL ± 10 μL

Research Use Only

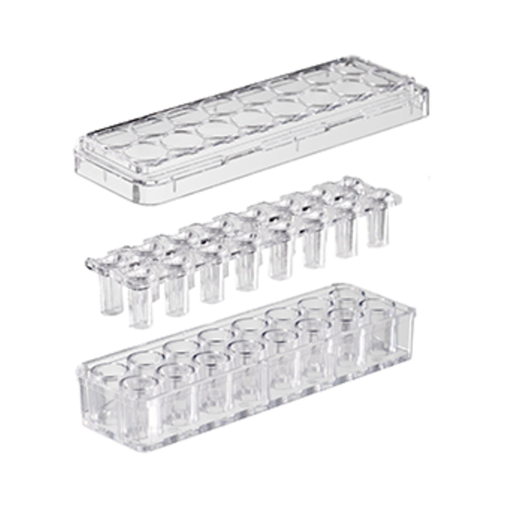

Continuously monitor co-cultured cells move in real-time.

Cell-cell interactions are key to understanding biological processes. The Agilent E-Plate Insert enables investigation of specific cell-cell interactions in real time, while maintaining the cells in separate compartments.

Two different cell populations are separated by a 0.4 μm pore size membrane, allowing control of the physical contact and duration of interaction. Well characteristics (size, shape, spacing, volume) of both E-Plate formats are similar.

Plate Surface Treatment: UV Irradiated
Pore Size: 0.4 μm ± 0.1 μm
Sensor Substrate Material: Biocompatible Surfaces
Well Bottom Dimension: 5.4 mm2 ± 12%
Well Plate Material: Biocompatible Surfaces
Well Volume: 95 μL ± 10%

Continuously monitor co-cultured cells move in real-time.

Cell-cell interactions are key to understanding biological processes. The Agilent E-Plate Insert enables investigation of specific cell-cell interactions in real time, while maintaining the cells in separate compartments.

Two different cell populations are separated by a 0.4 μm pore size membrane, allowing control of the physical contact and duration of interaction. Well characteristics (size, shape, spacing, volume) of both E-Plate formats are similar.

Plate Surface Treatment: UV Irradiated
Pore Size: 0.4 μm ± 0.1 μm
Sensor Substrate Material: Biocompatible Surfaces
Well Bottom Dimension: 5.4 mm2 ± 12%
Well Plate Material: Biocompatible Surfaces
Well Volume: 95 μL ± 10%

Bottom Shape: Flat
Plate Surface Treatment: UV Irradiated
Sensor Substrate Material: Glass
Viewing Window: No
Well Bottom Dimension: 5.0 mm +/- 0.05 mm
Well Plate Material: Polystyrene
Well Volume: 243 µL +/- 5 µl

Research Use Only

Bottom Shape: Flat
Plate Surface Treatment: UV Irradiated
Sensor Substrate Material: Glass
Viewing Window: No
Well Bottom Dimension: 5.0 mm ± 0.05 mm
Well Plate Material: Polystyrene
Well Volume: 243 μL ± 5 μL

Research Use Only

Glasboden mit Sichtfenster
VE: 1x6 Platten

Nettogewicht: 0,152 kg
Bruttogewicht: 0,322 kg

Bottom Shape: Square
Plate Surface Treatment: Gamma Irradiated
Sensor Substrate Material: PET
Viewing Window: No
Well Bottom Dimension: 2.5 mm ± 0.01 mm
Well Plate Material: Polystyrene
Well Volume: 95 μL ± 5 μL
(previous article no. 5867681001)

Research Use Only

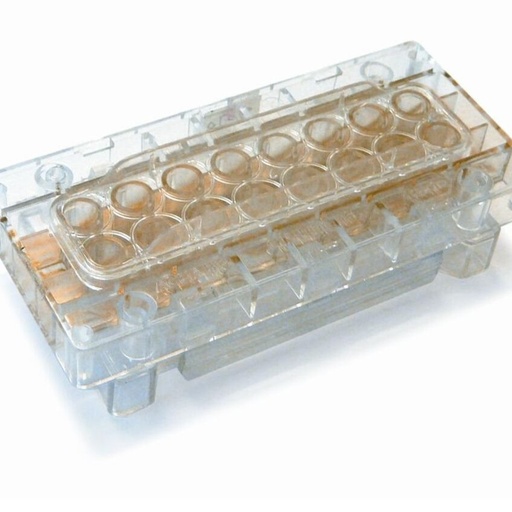

Easily derive cell invasion and migration kinetics.

Continuously monitor cell invasion and migration using the xCELLigence DP instrument with RTCA CIM plates, an electronically integrated Boyden Chamber. Obtain thousands of real-time CIM assay time points over the course of the entire experiment.

Bottom Shape: Round
Plate Surface Treatment: UV Irradiated
Sensor Substrate Material: PET
Sensor Impedance: 24 Ω ± 8 Ω at 10 kHz
Well Plate Material: PET
Lower Well Volume: 162 μL ± 3 μL
Upper Well Volume: 180 μL ± 5 μL
Well Bottom Dimension: 5.0 mm ± 0.075 mm

Glasboden
VE: 1x6 Platten

Nettogewicht: 0,555 kg
Bruttogewicht: 0,725 kg

Bottom Shape: Flat
Plate Surface Treatment: UV Irradiated
Sensor Substrate Material: Glass
Viewing Window: No
Well Bottom Dimension: 5.0 mm ± 0.075 mm
Well Plate Material: Polystyrene
Well Volume: 270 μL ± 10 μL

Research Use Only
