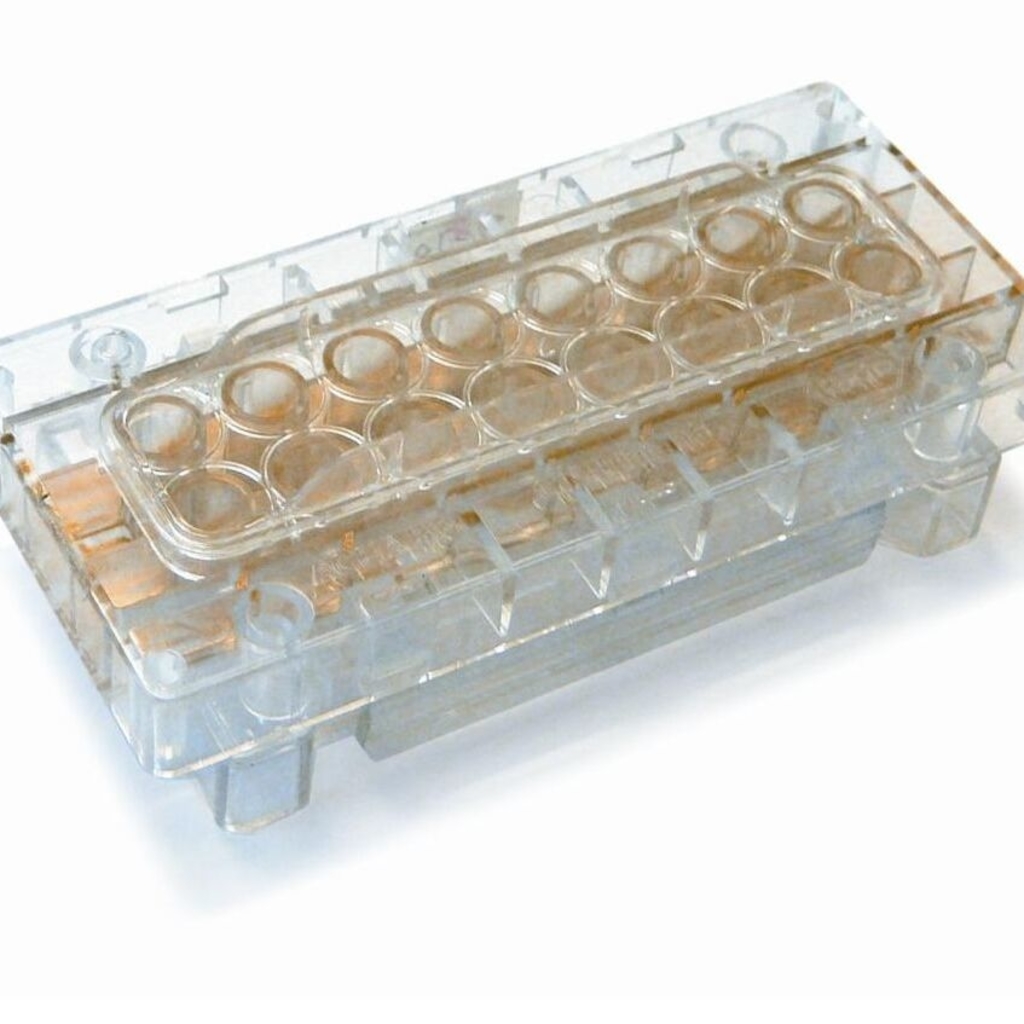

RTCA CIM Platte 16 (1x6 Platten)
Easily derive cell invasion and migration kinetics.
Continuously monitor cell invasion and migration using the xCELLigence DP instrument with RTCA CIM plates, an electronically integrated Boyden Chamber. Obtain thousands of real-time CIM assay time points over the course of the entire experiment.
Bottom Shape: Round
Plate Surface Treatment: UV Irradiated
Sensor Substrate Material: PET
Sensor Impedance: 24 Ω ± 8 Ω at 10 kHz
Well Plate Material: PET
Lower Well Volume: 162 μL ± 3 μL
Upper Well Volume: 180 μL ± 5 μL
Well Bottom Dimension: 5.0 mm ± 0.075 mm
Internal Reference:
5665817001
