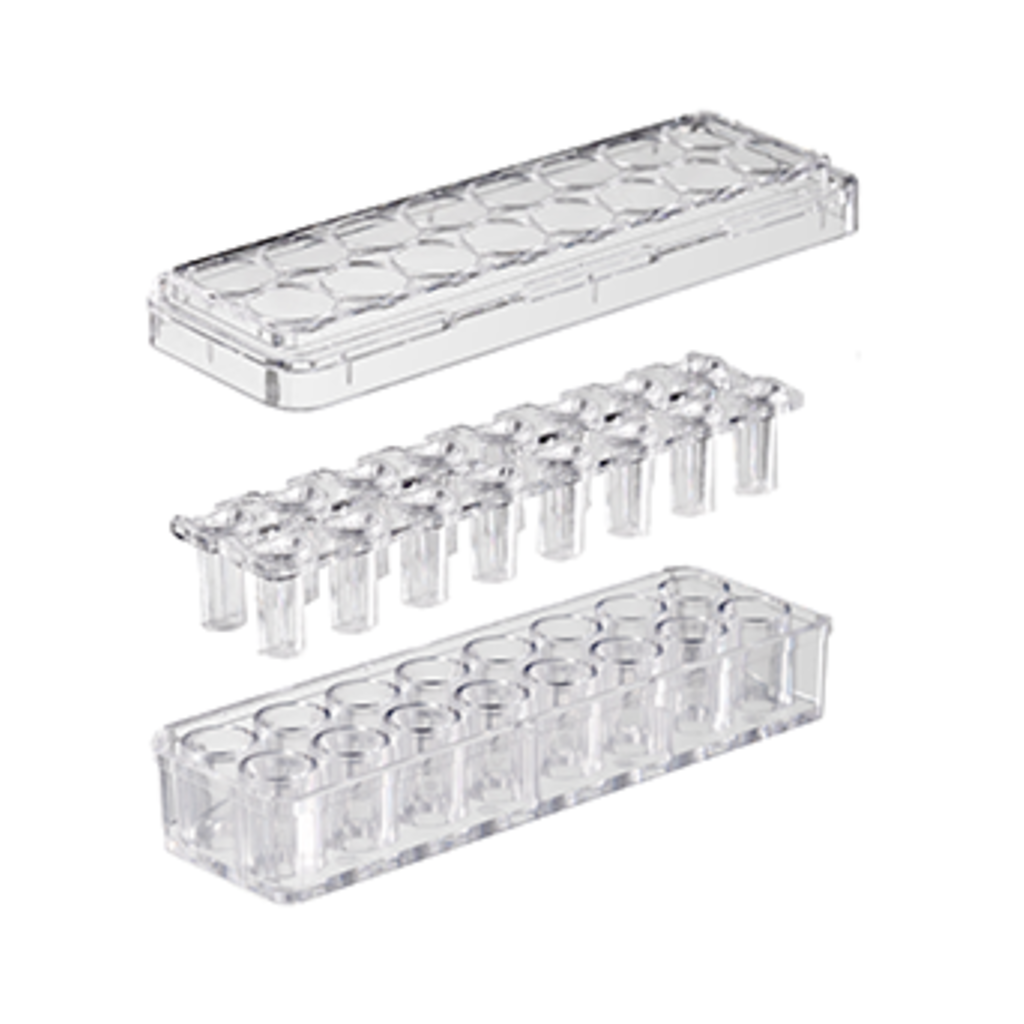

RTCA E-Plate Insert 16 (6 x 16-well Inserts)
Continuously monitor co-cultured cells move in real-time.
Cell-cell interactions are key to understanding biological processes. The Agilent E-Plate Insert enables investigation of specific cell-cell interactions in real time, while maintaining the cells in separate compartments.
Two different cell populations are separated by a 0.4 μm pore size membrane, allowing control of the physical contact and duration of interaction. Well characteristics (size, shape, spacing, volume) of both E-Plate formats are similar.
Plate Surface Treatment: UV Irradiated
Pore Size: 0.4 μm ± 0.1 μm
Sensor Substrate Material: Biocompatible Surfaces
Well Bottom Dimension: 5.4 mm2 ± 12%
Well Plate Material: Biocompatible Surfaces
Well Volume: 95 μL ± 10%
Internal Reference:
6465382001
